Product details

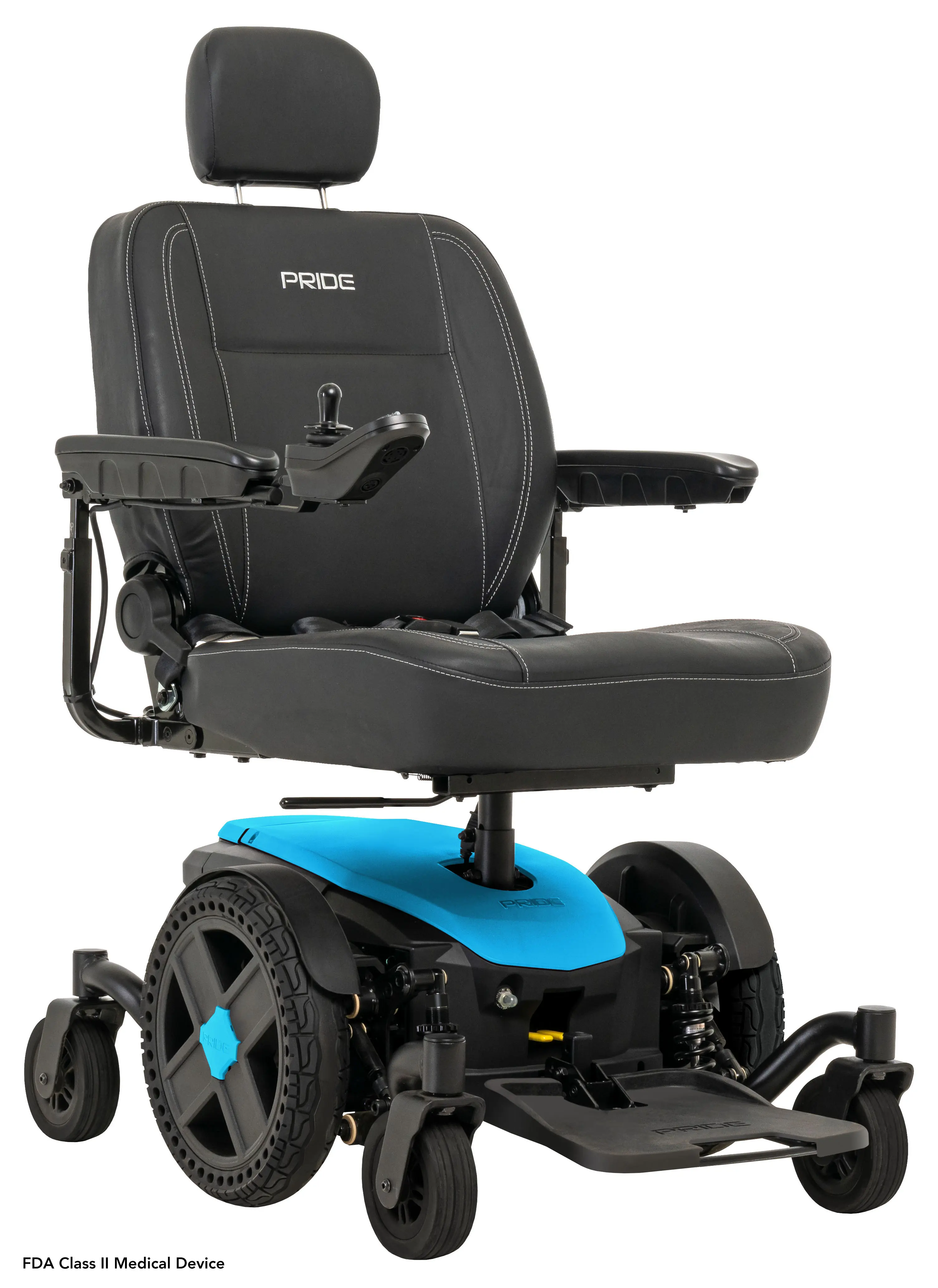

Jazzy EVO 614 Unlocks New Mobility Possibilities
When we imagined the Jazzy EVO 614 power wheelchair, we thought about all the opportunities that come only once.
Your grandchild only graduates from high school once. You might only ever get one chance to take an Alaskan cruise with your high school friends. Your favorite play is showing for one weekend only at the local theater.
Will you be there?
Life is filled with important moments that are special. The Jazzy EVO 614 power chair ensures you never miss an instant. Embrace new possibilities.
Built for your Adventures
The Jazzy EVO 614 is your ultimate mobility alternative. With new 13.75-inch perforated center drive wheels, a 3" ground clearance and new top speed of up to 4.4 mph, it's built for crossing the threshold for everyday use.
At just 22- inch, Jazzy EVO 614's turning radius comes in under two feet, which means your power wheelchair more easily navigates tight turns indoors and in your favorite shops and restaurants.
More Options to Customize Your Ride

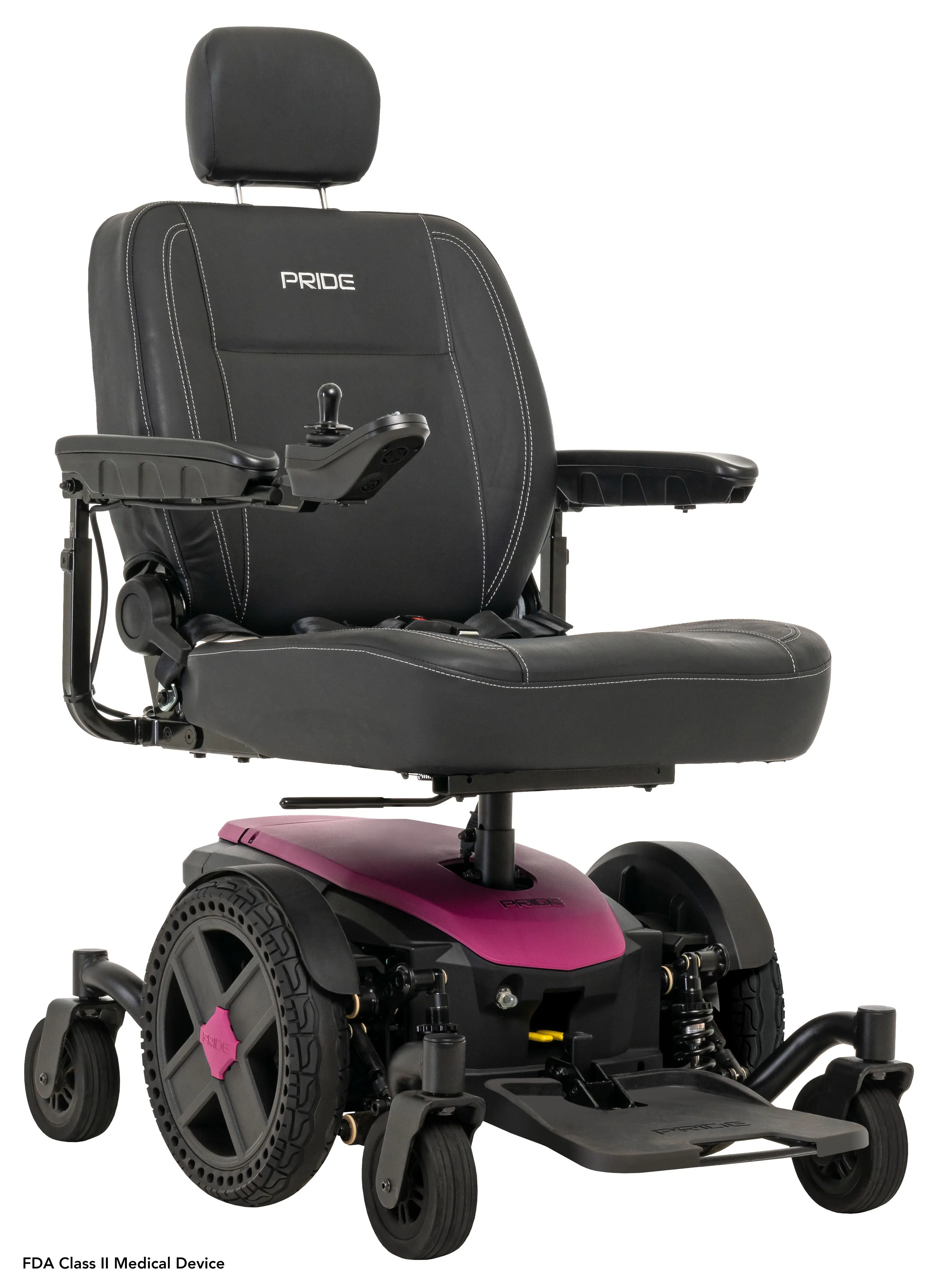

You want color options, and Jazzy EVO 614 has them. Interchangeable shrouds come in six striking colors. When you're ready for something new, simply call your Pride dealer.

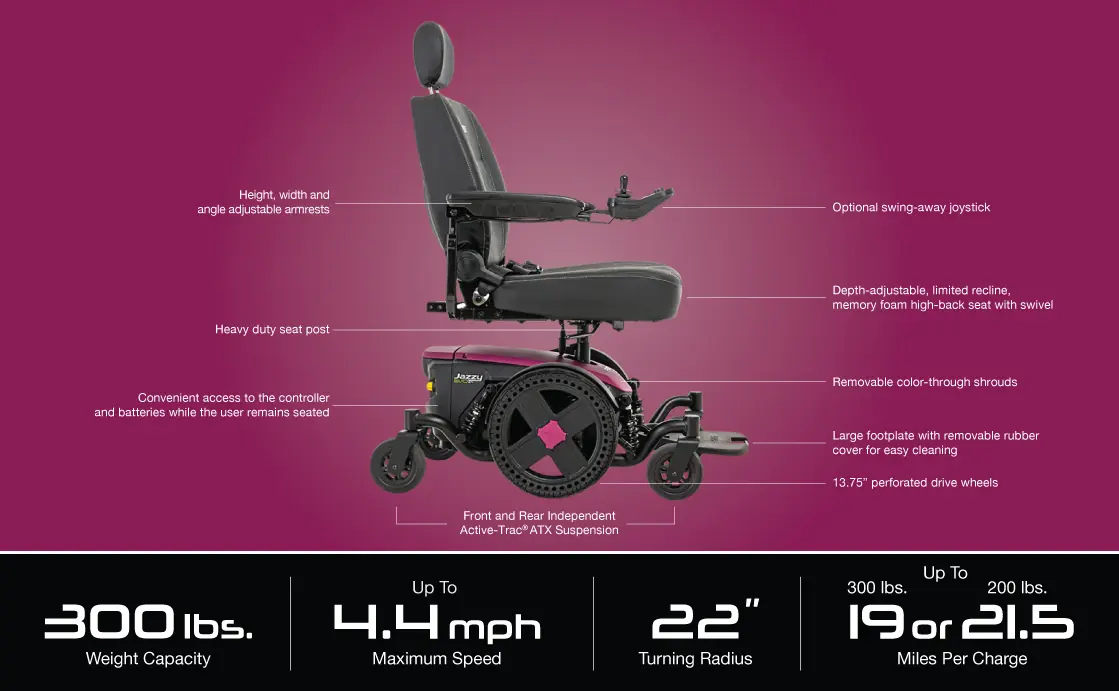

Jazzy EVO 614 Series Features:
300 lbs. weight capacity
Up to 4.4 mph
22” turning radius
Up to 19 miles at 300 lbs., 21.5 miles at 200 lbs.

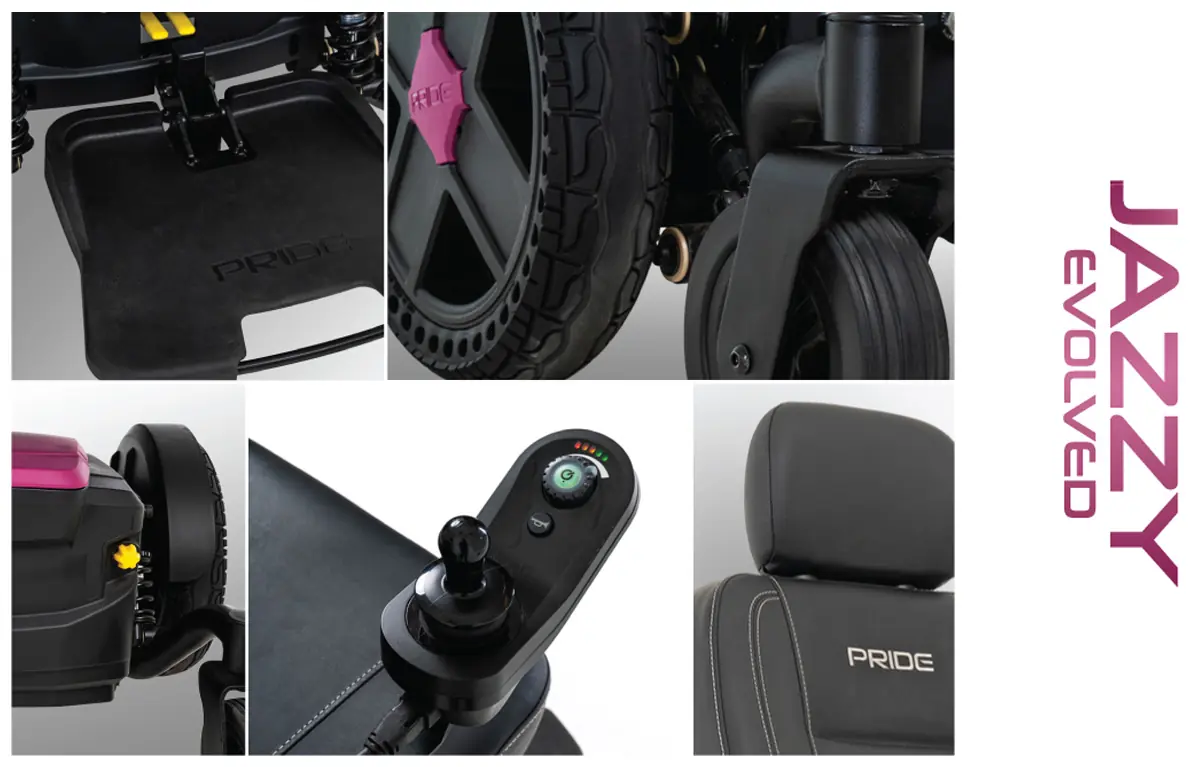

New! Depth adjustable, limited recline memory foam high-back seat with headrest and single seat post allows the user to swivel
New! 13.75” perforated drive tires
New! 60-amp Dynamic LiNX Adjustable joystick speed dial enables you to adjust your speed comfort level
New! Removable matte finish color through shrouds and 6 colors
Flip-up, height adjustable foot platform
Full independent front and rear Active-Trac® ATX Suspension for enhanced performance over more varied surfaces such as thresholds, gravel, and grassy terrains
In-line joystick mount
Convenient access to the controller and batteries while the user remains seated
HCPCS Code: Group 2: Standard (K0822/K0823)
Specifications
- Model
- Jazzy® EVO 614
- Weight Capacity
- 300 lbs.
- Turning Radius
- 22"
- Width
- 25.4"
- Length
- 40.5"
- Maximum Speed
- Up to 4.4 mph
- Ground Clearance
- 3"
- Front Casters
- 6"
- Drive Wheels
- 13.75" perforated
- Rear Casters
- 6"
- Drivetrain
- Two in-line HD motors
- Braking System
- Regenerative and electro-mechanical
- Suspension Type
- Full independent front and rear Active-Trac® (ATX) Suspension
- High-back Seat Sizes
- 16"x16"-18", 18"x18"-20", 20"x18-"-20"
- Seat-to-Floor Range
- 22"-24"
- Per Charge Range
- Up to 19 miles at 300 lbs.Up to 21.5 miles at 200 lbs.
- Standard Electronics
- 60A, Dynamic Linx
- Component Weights
- Base: 125.7 lbs.Seat: 57.8 lbs.Batteries: (2) 36 lbs. each;
- Total Weight
- 255.5 lbs.
- Battery Requirements
- (2) NF-22
- Battery Charger
- 5-amp, off-board
- HCPCS Code
- Group 2: Standard (K0822/K0823)
- Warranty
- Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited
- Colors
- Black (matte), White (matte), Red (matte), Iceberg Blue (matte), Robins Egg Blue (matte), Sugar Plum (matte)
