Breaking Down Barriers with the Jazzy EVO 613 Power Chair Series

The Jazzy EVO 613 and Jazzy EVO 613Li measure in at an impressive 22 inches wide at the base and offer a 22-inch turning radius. Not only is it one of the most powerful power wheelchairs on the market, but it’s also one of the narrowest and most maneuverable.

The Jazzy EVO 613 series gives you all the best that Pride has to offer with patented Active-Trac® Suspension and exclusive Mid-Wheel 6® Technology that provide you with a smoother, stable ride.

And it does all that while pushing the limits of mileage and speed capabilities. A single charge can carry you up to 21 miles with the lithium battery, and top speeds up to 5.1 mph.

The Jazzy EVO 613 series of power wheelchairs with lithium batteries represent a philosophy we share here at Discover My Mobility. If you're not constantly improving, ever innovating, and pushing boundaries, you might as well fall behind.

The Jazzy EVO 613 stands on the shoulders of the industry-defining designs of its forebearers. Powerful lithium batteries last longer, charge faster and weigh less. The Jazzy EVO 613 has a futuristic design, with edgy lines and sharp colorways, giving you extra confidence.

It's not just a mobility device – the Jazzy EVO 613 power wheelchair becomes a personal statement. Like us at Discover My Mobility, you also believe that the pursuit of progress is a way of life.

Comfort and Convenience with the Jazzy EVO Series

Adjust your seat depth, swivel, recline and set the armrests to the ideal position. Choose from three available seat sizes in 16-inch, 18-inch, and 20-inch widths with memory foam.

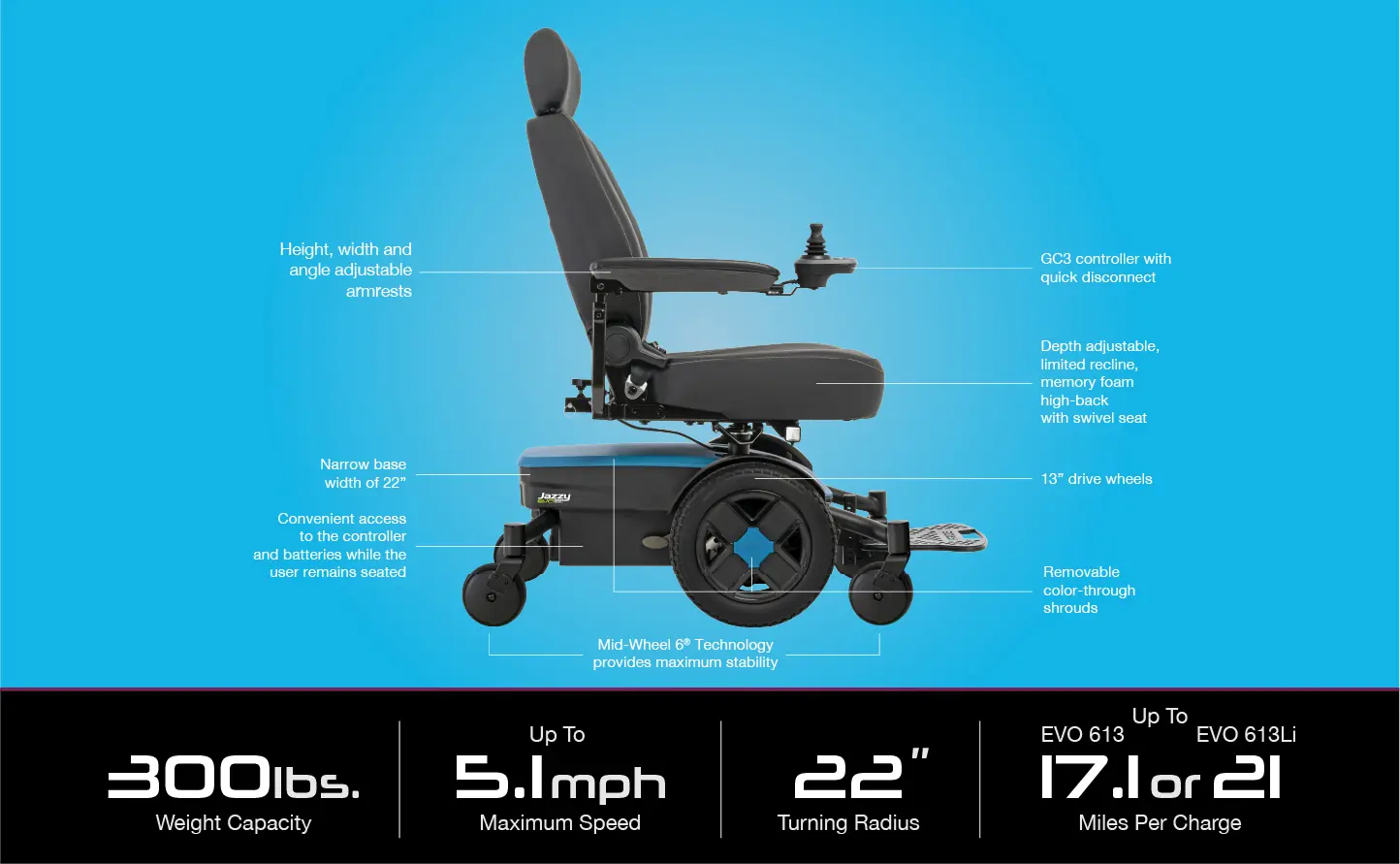

Jazzy EVO 613 Series Features:

  • 300 lb. weight capacity

  • Narrow base width of only 22"

  • Maximum speed up to 5.1 mph

  • 3" Ground clearance

  • 13" solid drive tires

  • Per charge range up to 17 miles with U1 SLA batteries and up to 21 miles with lithium ion (200 lbs.)

  • Mid-wheel 6® Technology offers tight turning radius around doorways and corners

  • Pride's patented Active-Trac® (ATX) Suspension ensures a smooth ride experience over uneven surfaces

  • Memory foam high-back seat with single seat post allows the user to swivel

  • Available depth-adjustable seat sizes: 16" W x16"-18" D, 18" W x 18"-20" D, 20" W x 18"-20"

  • Height, width, and angle adjustable armrests

  • Flip-up, height, angle, and depth adjustable foot platform

  • Removable matte-finish color-through shrouds

  • HCPCS Code: Group 2: Standard (K0822/K0823)



Specifications

Model
Jazzy® EVO 613/ Jazzy® EVO 613 Li
Weight Capacity
300 lbs.
Turning Radius
22"
Width
22"
Length
41" w/footplate 35" w/o footplate
Maximum Speed
Up to 5.1 mph
Ground Clearance
3" at motor bracket
Front Wheels
5" solid
Drive Wheels
13" solid
Rear Wheels
5" casters
Drivetrain
Two motor, in-line, mid-wheel drive
Braking System
Regenerative and electro-mechanical
Suspension Type
Active-Trac® (ATX)
Standard Seat Sizes
High-backBlack vinyl16"x16"-18", 18"x18"-20", 20"x18"-20"
Seat-to-Floor Range
19.75"-21.25"
Seat Weight(s)
46 lbs. (16"), 48 lbs (18"), 50 lbs. (20")
Maximum Seat Size
20"-20"
Power Elevating Seat
NA
Standard Electronics
40A, PG GC3
Battery Size(s)
(2) 12 volt, U-1 or (1) 25V Lithium-iron phosphate
Battery Weight
(2) U1-23.5 lbs. each; (1)Lithium - 18.5 lbs.
Battery Charger
3.5A, off-board
Per Charge Range
SLA- up to 14 miles (300 lbs.), up to 17.1 miles (200lbs,); Lithium up to 17.6 miles ( 300 lbs.), up to 21 miles (200lbs.)
Weight of Heaviest Piece
94 lbs. (base)
Total Weight
189 lbs. . (SLA); 160.5 (Lithium)
HCPCS Code
Group 2: Standard (K0822/K0823)
Warranty
Frame: 5-year limited; Drivetrain: 13-month limited; Electronics: 13-month limited; Batteries: 13-month limited (SLA); 3-year limited (Lithium)
Colors
Black (matte), Red (matte), Iceberg Blue (matte), Robins Egg Blue (matte), Sugar Plum (matte)
