Product details

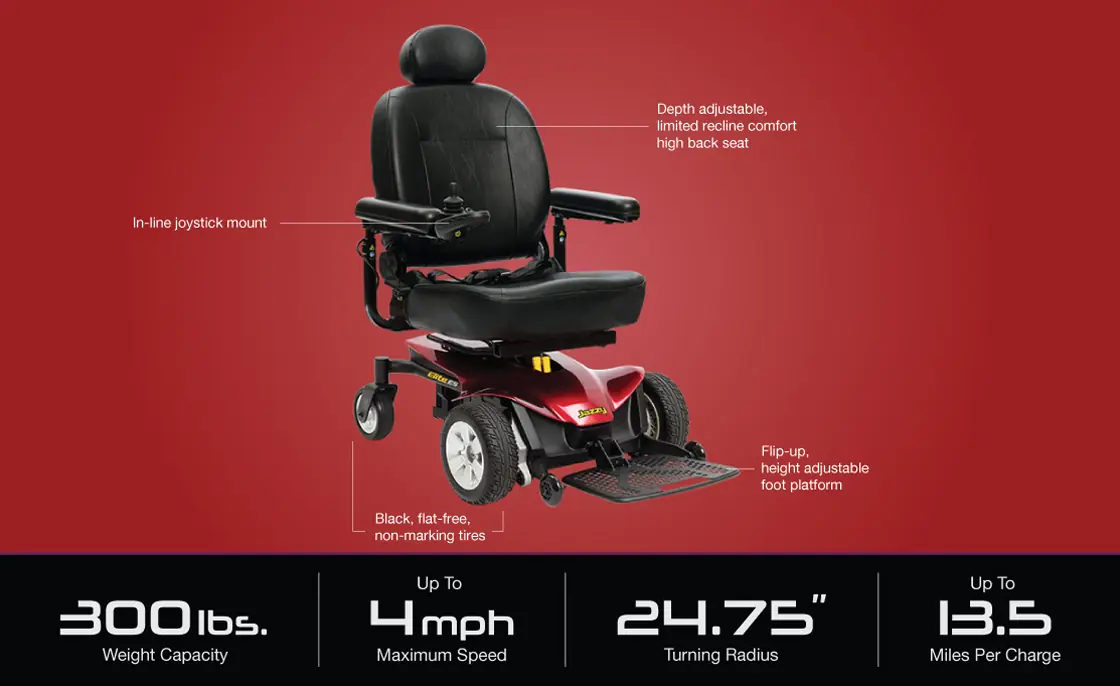

Jazzy Elite ES Features:
300 lbs. weight capacity
Up to 4 mph
24.75" turning radius
Up to 13.5 miles per charge
In-line, front-wheel drive technology provides tight turns around corners
Comfortable, depth-adjustable, limited recline high-back seat with headrest
40-apm, PG GC 3 controller
Optimal indoor maneuverability in small spaces
Large front wheels for extra absorption over obstacles
Available in Candy Apple Red
HCPCS Code: Group 2: Standard (K0822/K0823)
Specifications
- Model
- Jazzy® Elite ES
- Weight Capacity
- 300 lbs.
- Turning Radius
- 24.75"
- Width
- 22.75"
- Length
- 34.75"/41" (with footplate)
- Maximum Speed
- Up to 4.0 mph
- Ground Clearance
- 1.85" at motors
- Front Wheels
- 3" solid anti-tips
- Drive Wheels
- 9" solid
- Rear Wheels
- 6" solid casters
- Drivetrain
- Two motor, in-line, front-wheel drive
- Braking System
- Regenerative and electro-mechanical
- Suspension Type
- Limited
- High-Back Seat (max. size)
- 20"W x 20"D
- High-Back Seat-to-Floor Range
- 21.5” – 23.5”
- Standard Electronics
- 40A, PG GC3
- Battery Size (2 required)
- 12 volt, U-1
- Standard Battery Charger
- 3.5A, off-board
- Per-Charge Range
- Up to 15 miles
- Battery Weight
- 25 lbs. each
- HCPCS
- Group 2: Standard (K0822/K0823)
- Weight of Heaviest Piece
- 69 lbs.
- Standard Seat Weight
- 50.2 lbs. (comfort, high-back)
- Standard Seat Size
- 16" x 16"-18" 18" x 18"-20" 20" x 18"-20"
- Warranty
- 5-year limited on frame;13-month limited on electronics;13-month on drive motors;13-month limited on batteries.
