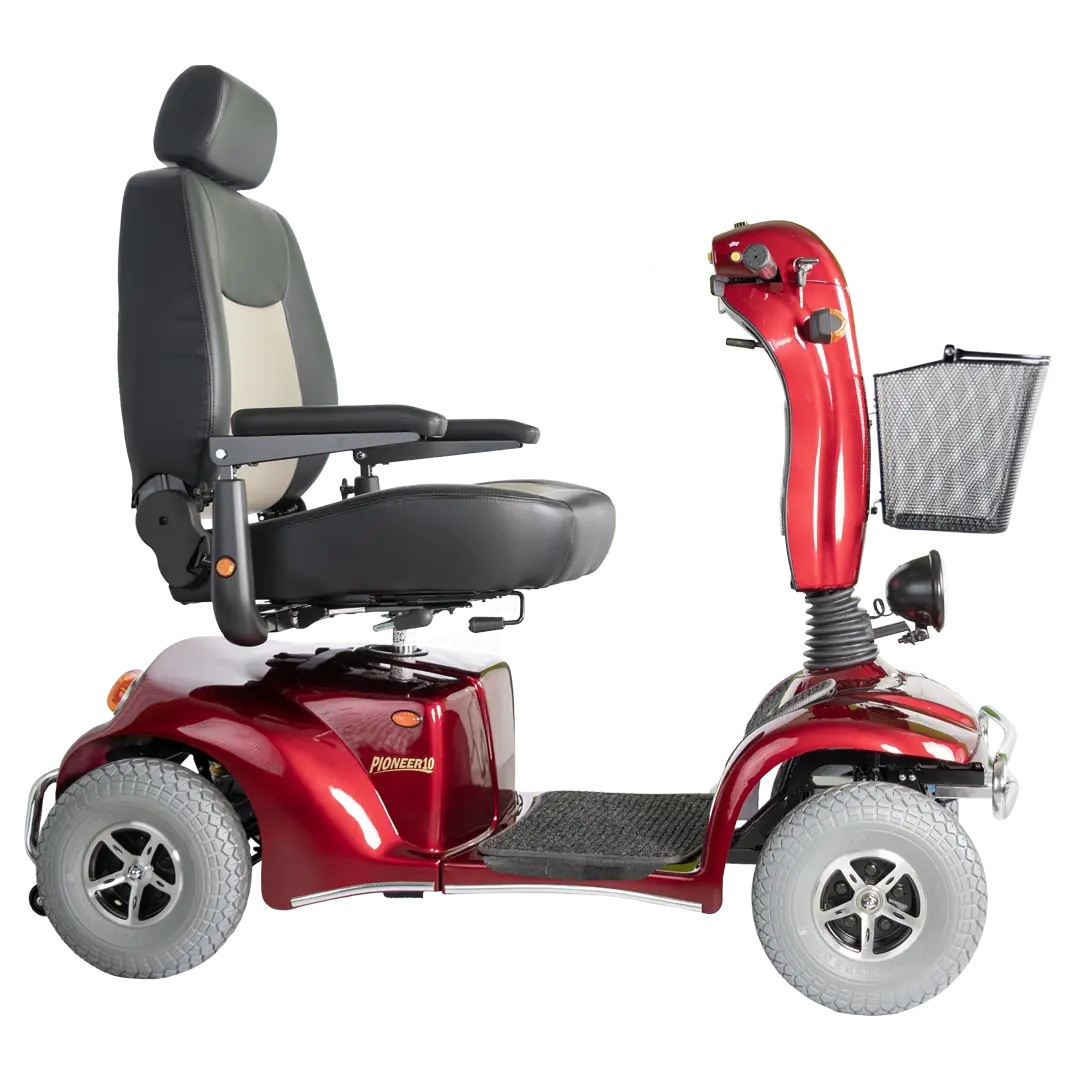

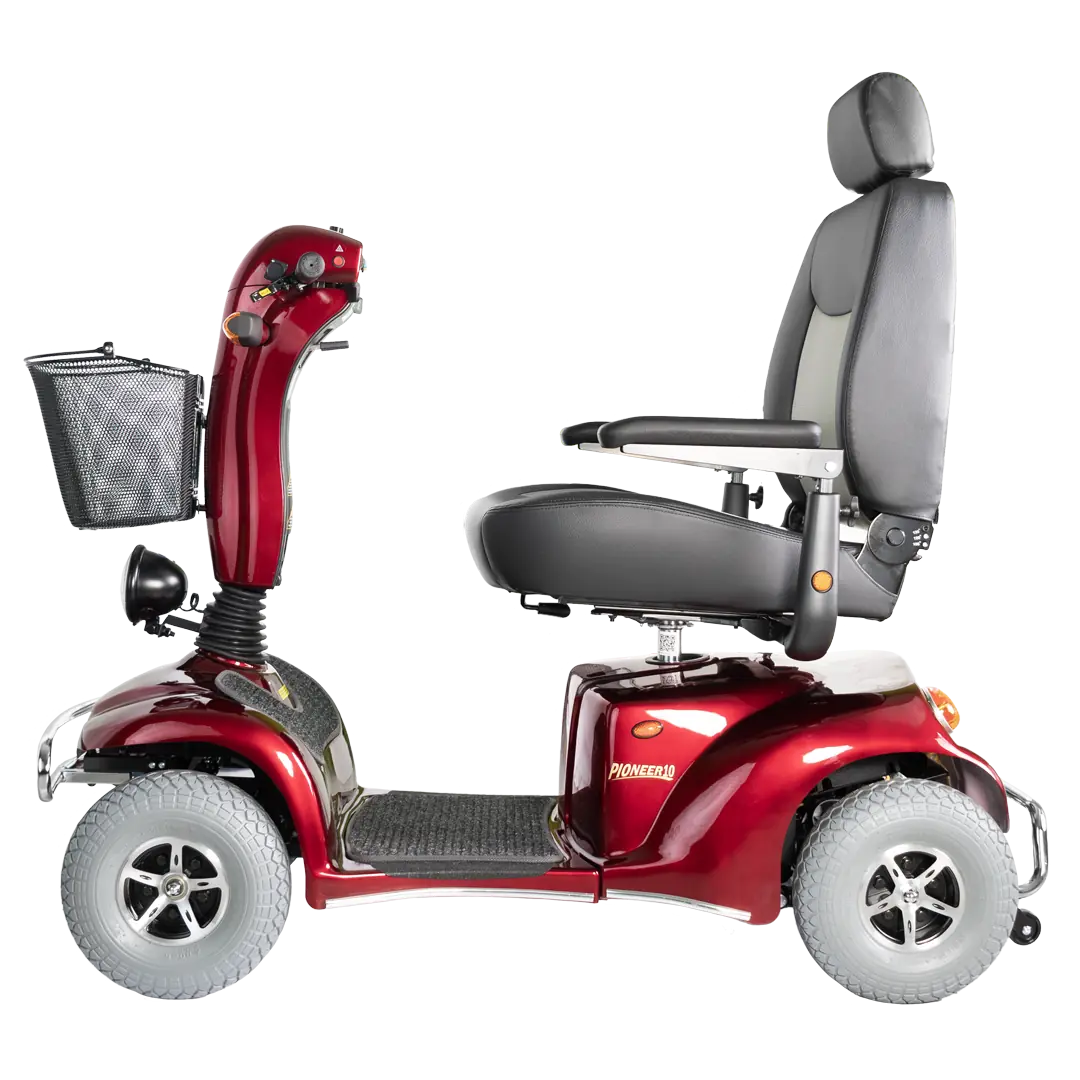

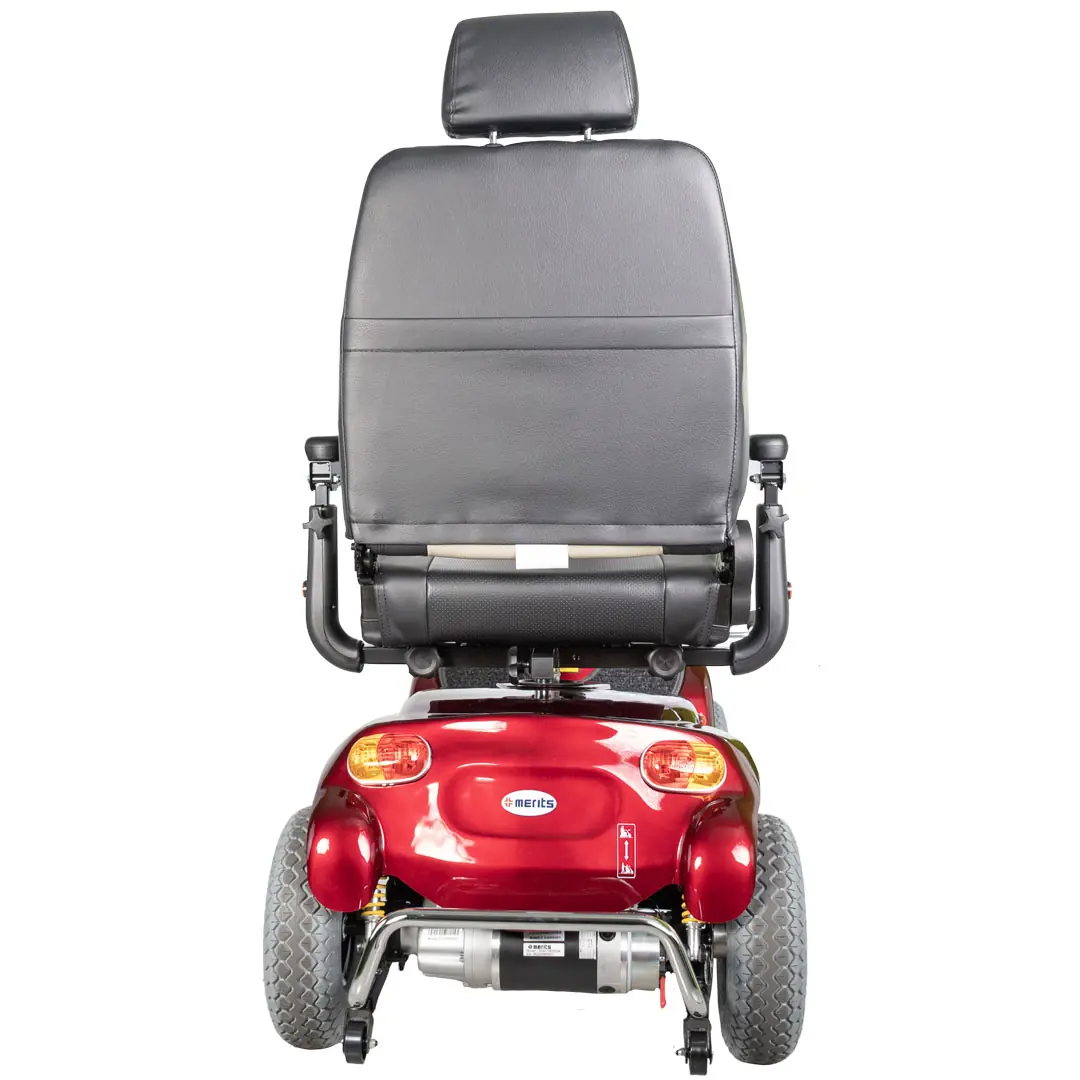

Pioneer 10: Safe and Stable 4-Wheel Scooter for Outdoor Navigation
The Pioneer 10 is designed with user safety as its paramount priority. Its four-wheel configuration provides inherent stability during travel, while a pre-set half-speed control on the dashboard ensures a consistently smooth and comfortable ride. An automatic sensor further enhances safety by reducing speed by half when turning, simplifying navigation around sharp corners. Constructed with a durable one-piece frame and supporting a 500 lb. weight capacity, the Pioneer 10 is ideally suited for robust outdoor use and adeptly handles rough or uneven terrain.
Key features include a hydraulic, adjustable tiller for ergonomic control and a spacious 22" W x 20" D x 22" H sliding captain's seat for superior user comfort. For operational safety, it incorporates a half-speed inhibit switch, along with integrated headlights, taillights, turn signals, and hazard lights. Offering a 4-inch ground clearance, it capably navigates minor obstacles, with its four wheels providing enhanced stability.
Product Features:
Hydraulic, adjustable tiller
22”W x 20”D x 22”H, sliding, captain seat
Half speed inhibit switch
Headlight, tail lights, turn signals, and hazard lights
4” ground clearance
Four wheels provide more stability
Specifications
- Product#
- S341
- Weight Capacity
- 500 lbs.
- Drivetrain
- RWD
- Maximum Speed
- 6 mph
- Per-Charge Range
- up to 32 miles
- Battery Size (2 required)
- 75Ah, M24 AGM
- Ground Clearance
- 4”
- Turning Radius
- 62”
- Overall Length
- 59”
- Overall Width
- 27”
- Overall Height
- 47”
- Suspension
- Yes
- Seat-to-Floor Height
- 16” - 19”
- Seat-to-Ground Height
- 25” - 28”
- Seat Width
- 22”
- Seat Depth
- 20”
- Backrest Height
- 22”
- Total Weight
- 269 lbs.
- Weight of Heaviest Pc.
- 121 lbs.
- Motor
- DC 24V, 400W
- Controller
- Dynamic Rhino2 160A
- Charger
- 6A off-board
- Gradient
- 12°
- Front Wheels
- 12.5” flat-free
- Drive Wheels
- 12.5” flat-free
- HCPCS Code
- K0899
- Color Option
- Red
